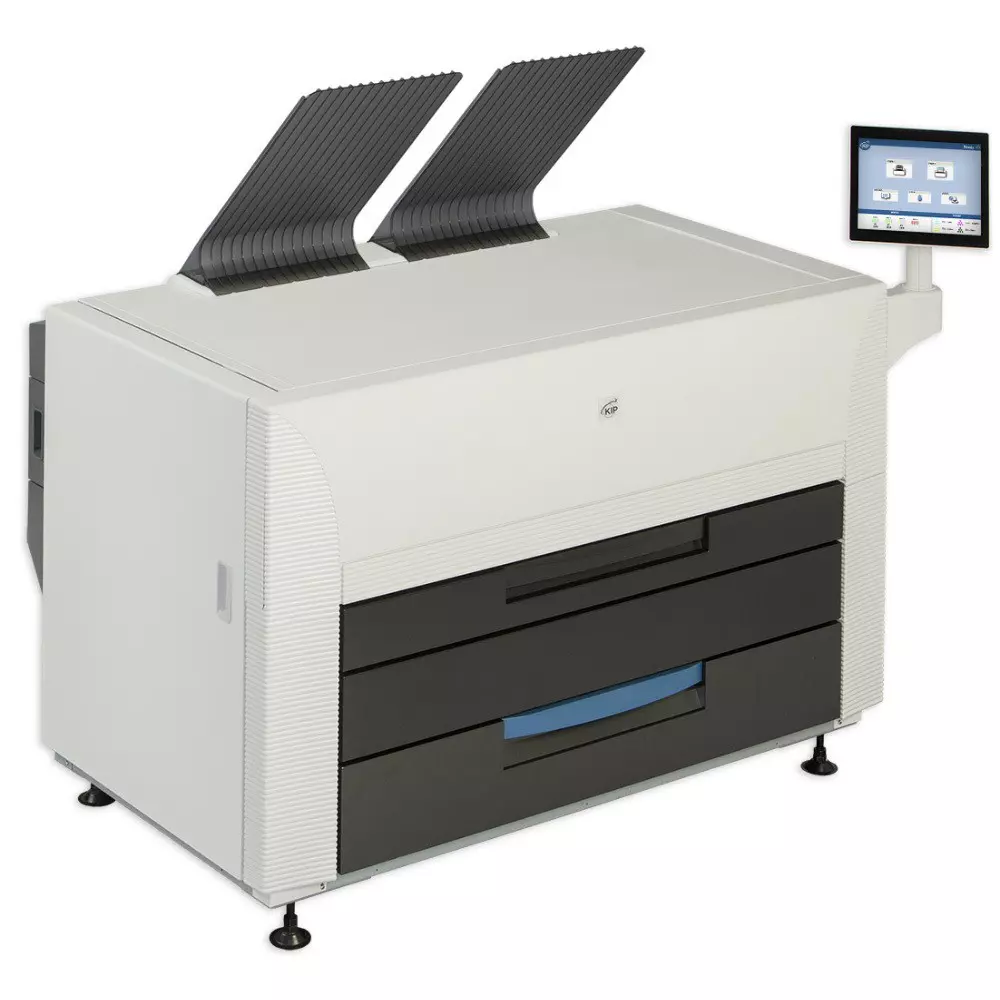

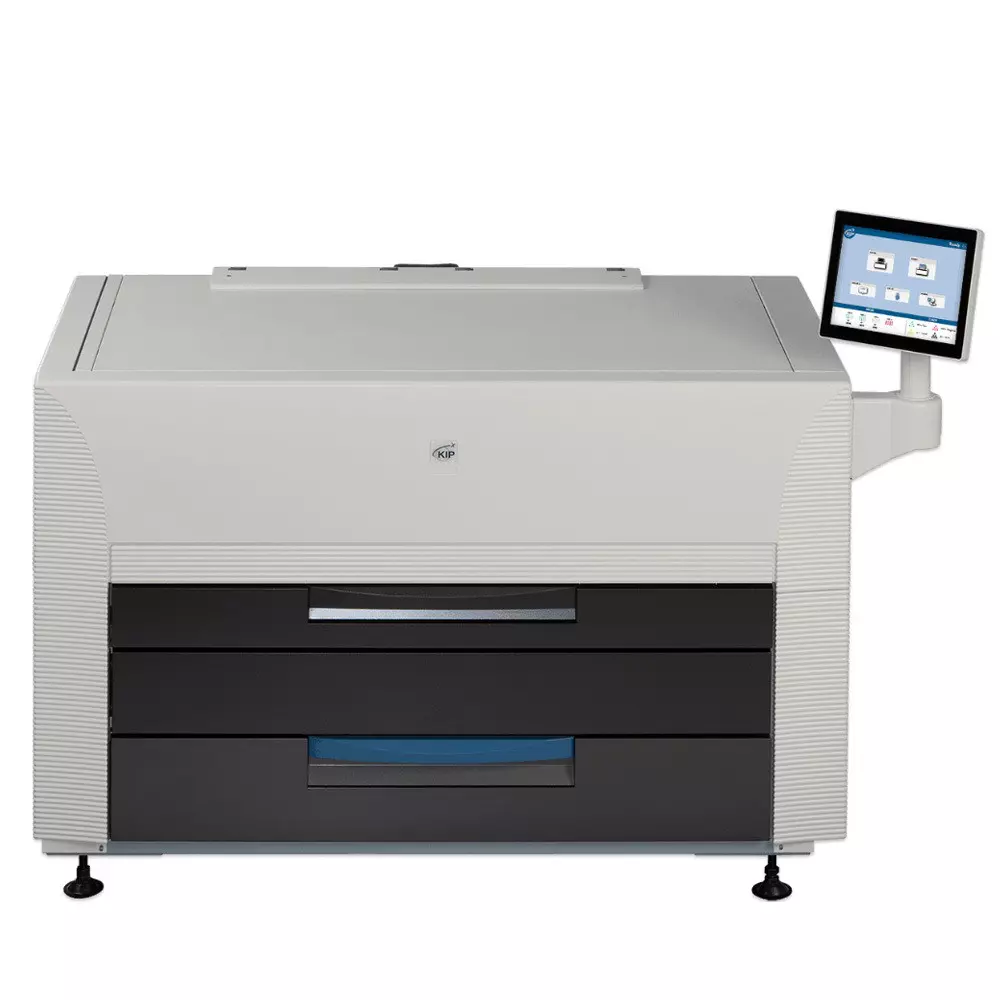

KIP 850

  • 2 Rulolu Ağ Yazıcısı
  • 12" Smart System K Dokunmatik Ekranı
  • Standart Önden İstifleme (duvara yakın kurulum sağlar)

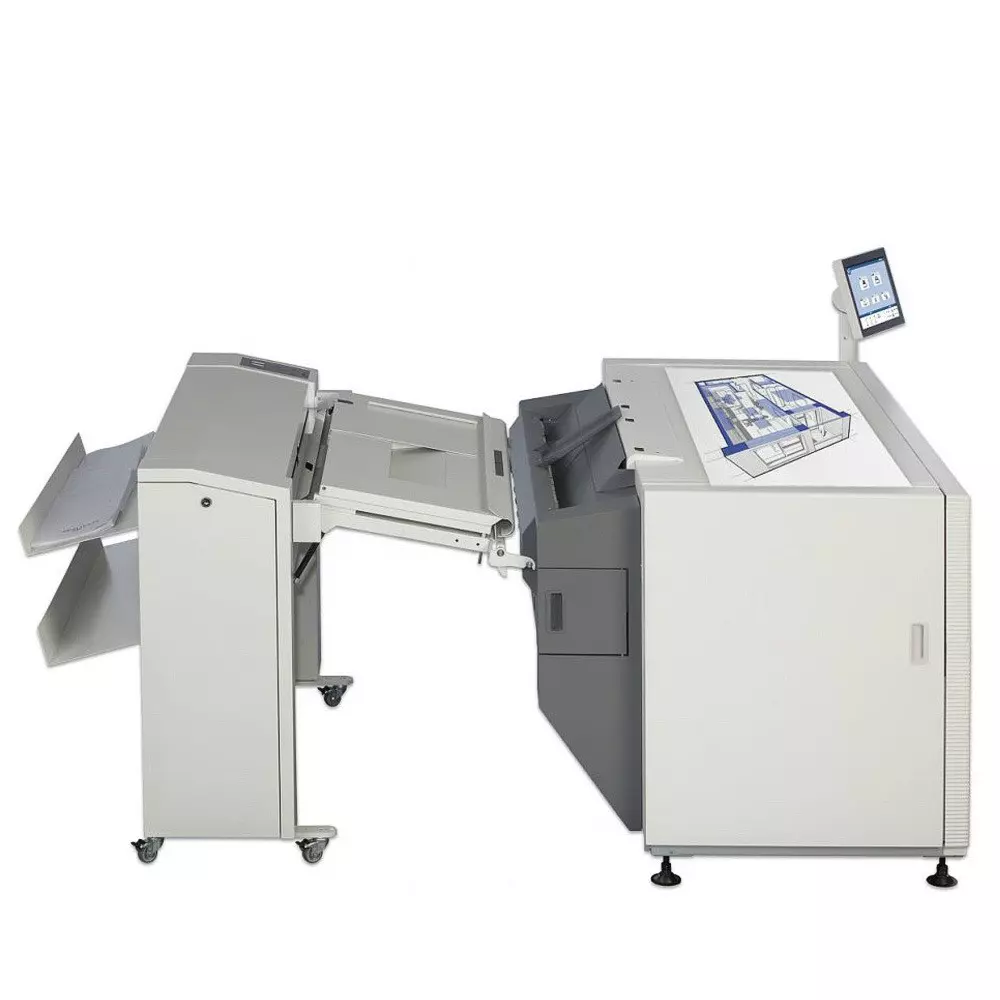

  • KIPFold için İsteğe Bağlı Arkadan İstifleme
  • KIP System K Print Management Suite
  • AutoCAD onaylı Sürücü
  • İş Akışı Otomasyonu

Özellikler

Özellikler

Geniş format işlevselliğinde nihai çözüm!

KIP 850 ağ baskı sistemi, isteğe bağlı önden istifleme tepsisi sayesinde alan tasarrufu sağlayan, renkli ve siyah-beyaz geniş formatlı belgeleri çığır açan baskı kalitesiyle, hızlı bir biçimde ve düşük maliyetli olarak sunan bir çalışma grubu yazıcısıdır. KIP 850 yazıcının tutarlı baskı hızı ile hassas görüntüleme özelliği sayesinde kalite standartlarını aşmak ve proje zaman çizelgelerini karşılamak kolay olur.

Teknik Özellikler & Belgeler

Teknik Özellikler & Belgeler
General
2/4 Roll Colour and Black & White Printer

Colour and black & white printer with intelligent
KIP System K touchscreen
2/4 Roll Colour and Black & White Print/Copy/Scan Colour and black & white printer with intelligent Print/Copy/Scan KIP System K touchscreen for Print/Copy and Scan functions
Scanner Stand KIP 720 / KIP 2300 Scanner Stand (for the KIP 880 – 890
or optional for stand-alone scan applications)
Stacking Systems (standard) Front Stacking Print Tray
Description High production colour and black & white wide format print/copy/scan
Type LED Array Electro photography with organic photoconductor (OPC drum) Contact Development using non magnetic mono-component toner
Configurations Printer or multi-function system (print/copy/scan)
Speed Up to 268 sqm per hour in either black & white or colour regardless of image type or print resolution
Warm Up Time Instant from standby, less than 6 minutes from power on
Toner Four colour (CMYK), dry toner, print images are UV resistant and waterproof
Input Power EU/UK: 220 – 240 V, 50/60 Hz, 20 A
Power Consumption Ready: 0.6 kWh. Printing: 1.9 kWh, Warm Up: 3.4 kWh, Sleep Mode: 3 Wh
Acoustic Noise < 65 db Printing
Ozone < 0.05 ppm (average of 8 hours)
Dimensions (W x D x H) KIP 850: 1500 x 1080 x 1015 mm
Weight KIP 850: 485 kg
Printer
Print resolution 600 x 2,400 dpi
Paper capacity 280 sqm ( 2 rolls + cut sheet )
560 sqm ( 4 rolls + cut sheet )
Output sizes width (roll media) 297 mm – 914 mm
Output sizes length (roll media) 210 mm minimum, 64 m maximum (actual length may be dependent on media type and file type limitations)
Paper weight (roll media) Bond: 67 – 150 gsm, Film: 3 – 4 mil Double Matte Polyester, Tracing: 67 – 75 gsm
Banner and Gloss: see KIP 800 Media Guide
Sheet Bypass Up to 150 gsm bond / Maximum sheet size
914 mm x manageable length / Minimum sheet size A3
Media types Bond Paper: Economical Bond, Standard Bond. Specialty
Bond paper: Presentation Bond, Heavy Weight Bond.
Polyester Film: 3 mil Clear, 3 mil Double Matte, 4 mil
White Opaque. Banner Media: Fusion Soft Polyester.
Please see the KIP 800 Series Media Guide for details.
Scanner / Copier
Resolution 600 dpi (optical)
Original Single Sheet, image viewable / face up
Widths 210 mm – 914 mm (international standard page sizes to include ANSI, ARCH, ISO A & B, CHN, JPN)
Length 210 mm – 6 m
  Please see the KIP 2300 Scanner documentation for details on this optional scanner for the KIP 890 Colour System
Controller
Controller Type System K Embedded, Windows Standard Embedded
7 – 64 bit, i5 Quad Cord (min)
Memory 4 GB (min)
Compatible File Formats Raster Colour: TIFF, JPG, JPG2000, PNG, BMP, GIF, TGA, RLE/RLC
Vector Colour/B&W: HPGL, HPGL/2, HP-RTL, Postscript (PS/EPS), Adobe PDF, Autodesk DWF, Multipage PDF & DWF
Raster B&W: TIFF Group 3 & 4, CALS Group 4, Grayscale TIFF
Vector B&W: Calcomp 906/907
Space, Electrical & Environmental Requirements
Total Space (minimum) 3350 x 2600 mm (W x D)
3350 x 5190 mm (W x D) (with optional rear print stacker)
Electrical Requirements 220-240 V, 50/60 Hz, 16 A
Electrical Receptacle Europe = CEE 7
UK = BS 546
All other regions = please refer to your local standards
Network Port RJ-45 port-CAT5 or higher. LAN rated at least at 100 MB.
Recommended is 1000 MB
Room Temperature 10 – 30°C
Humidity 15 – 80% RH
Site Survey KIP 800 Colour Series site survey documentation is to be completed prior to system installation

  • The support and availability of the listed specifications and functionalities varies depending on operating systems, applications, network protocols as well as network and system configurations.
  • Some of the product illustrations contain optional accessories.
  • Specifications and accessories are based on the information available at the time of printing and are subject to change without notice.
  • Konica Minolta does not warrant that all specifications mentioned will be error-free.
  • Microsoft, Windows and the Windows logo are trademarks, or registered trademarks, of Microsoft Corporation in the United States and/or other countries.
  • All other brand and product names may be registered trademarks or trademarks of their respective holders and are hereby acknowledged.

KIP 850 hakkında daha fazla bilgi almak için bizimle iletişime geçin.
