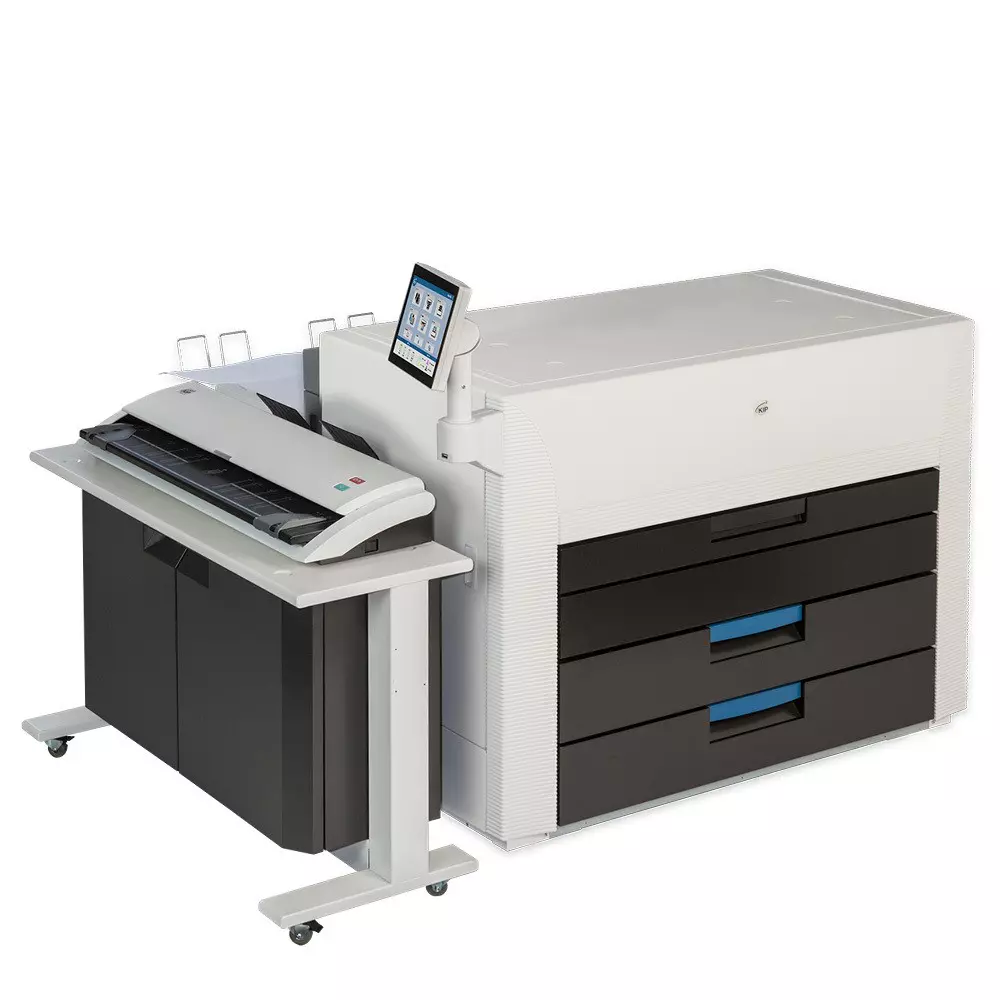

KIP 980

  • Dakika başına 20 adede kadar siyah-beyaz A1 veya 16 adet renkli A1 sayfa yazdırma özelliğine sahip tek geçişli yazıcı ve MFP
  • 3 farklı sistem yapılandırmasıyla yüksek esneklik
  • Az yer kaplayan üretken baskı motorları
  • Kalın malzemeler ve tekil sayfalar yüksek hızda taranır ve kopyalanır
  • Kuru toner sistemi, yazdırma işleminden sonra sonlandırılmaya hazır olan kokusuz baskılar sağlar

Özellikler

Özellikler

KIP 980

KIP 900 Renkli Seri sistemler, yüksek çıktı talebi, hassas görüntüleme ve göze çarpan, canlı renk doğruluğu gerektiren baskı alanları için tasarlanmıştır. KIP 900 Renkli Seri sistemler tarafından oluşturulan tüm baskılar ve kopyalar en yüksek görüntü devamlılığını sağlar ve hiç solmaz. Uzun süre ışığa maruz kaldıklarında solmazlar veya renk bozulması göstermezler. KIP 900 Renkli Seri tarafından kullanılan CMYK kuru toner sistemi, kötü havalarda dahi, dış mekan uygulamaları için uygun olan %100 su geçirmez görüntüler üretir. KIP 900 Renkli Seri sistemler, mimari, mühendislik ve yapı alanındaki belgelerden haritalara ve POS materyallerine kadar çok çeşitli baskı görevlerine yönelik kapsamlı, geniş formatlı bir çözümdür.

Teknik Özellikler & Belgeler

Teknik Özellikler & Belgeler
General
4 Roll Colour and Black & White Printer Colour and black & white printer with intelligent KIP System K touchscreen
4 Roll Colour and Black & White Print/Copy/STF Colour and black & white printer with intelligent KIP System K touchscreen for Print/Copy and STF functions
System Scanners KIP 980: KIP 720 CIS Scanner
KIP 990: KIP 2300 CCD Scanner
Scanner Stand KIP 720 / KIP 2300 Scanner Stand (for the KIP 980 – 990 or optional for stand-alone scan applications)
Stacking Systems
(optional)		 KIP 900 Stacker
Finishing Systems
(optional)		 KIPFold 2800
Type LED Array Electro photography with organic photoconductor (OPC drum) Contact Development using non magnetic mono-component toner
Configurations Printer or multi-function system (print/copy/scan)
Speed Up to 7,200 sq. ft (670 m2) in single pass black or 5,760 sq. ft. (535 m2) per hour in colour regardless of image type or print resolution
Warm Up Time Instant from standby, less than 4 minutes from power on
Toner Four colour (CMYK), dry toner, print images are UV resistant and waterproof
Input Power North America: 2x 208-240VAC +6%/-10% 50/60Hz, 16 A
EU/UK: 2x 220-240 V, 50/60 Hz, 16 A
Power Consumption Printing 2.4 kWh (Average), Ready 630 W (Average), Sleep Mode 3.4 W
Acoustic Noise < 65 db (printing), < 60 db (standby) (ISO 7779)
Ozone < 0.05 ppm (average of 8 hours)
Dimensions (W x D x H) 78” x 43” x 48” / 1970 x 1080 x 1220 mm
Weight 1,212 lbs / 550 kgs
NOTE: Weight of the optional scanner or stacker is not included
Printer
Print resolution 600 x 1,800 dpi
Paper capacity 7,800 sq ft / 724 sq m ( 4 rolls + cut sheet )
Output sizes width
(roll media)		 11” – 36” / 297 mm – 914 mm (3” Core)
Paper weight
(roll media)		 See KIP Media Guide
Sheet Bypass Up to 40 lbs. / 150 gsm bond | Maximum sheet size 36”/ 914 mm x manageable length | Minimum sheet size 11” x 17” / A3
Media Types See KIP Media Guide
Scanner/Copier
Resolution 600 dpi (optical)
Original Single Sheet, image viewable/face up
Widths 8.5” – 36” / 210 mm – 914 mm (international standard page sizes to include ANSI, ARCH, ISO A & B, CHN, JPN)
Length 8.5” – 19.7’ / 210 mm – 6 m
Controller
Controller type System K Embedded, Windows Standard Embedded 7 – 64 bit, i7 Quad Cord (min)
Memory 16 GB (min)
Hard drive 256 SSD (min)
Compatible File Formats Raster Colour: TIFF, JPG, JPG2000, PNG, BMP, GIF, TGA, RLE/RLC
Vector Colour/B&W: HPGL, HPGL/2, HP-RTL, Postscript (PS/ EPS), PDF, Autodesk DWF, Multipage PDF & DWF
Raster B&W: TIFF Group 3 & 4, CALS Group 4, Grayscale TIFF
Vector B&W: Calcomp 906/907
Space, electrical & environmental requirements
Total Space (minimum) 132” x 182” / 3350 mm x 4610 mm ( W x D ) (KIP 900 Series with stacker) The flexibility of the KIP 980 / 990 system permits the scanner to be placed perpendicular or parallel to the KIP printer for individual workflows which can result in special requirements that may differ than noted above.
Electrical Requirements KIP 970 = Dual 208V – 240V 50/60 Hz, 16A
KIP 980 / 990 = North America - the above, plus one 110V – 120V 50/60 Hz, 6A or higher (for KIP scanner)
EU & UK - three 220V – 240V 50/60 Hz 16A (for printer and scanner)
Electrical Receptacle North America = two NEMA 6-20 R (plus one NEMA 5-20 R for the KIP 980 / 990)
Europe = CEE 7 (x3 for KIP 980 / 990)
UK = BS 546 (x3 for KIP 980 / 990)
All other regions = please refer to your local standards
Network Port RJ-45 port-CAT5 or higher. LAN rated at least at 100 mb.
Recommended is 1000 mb
Room Temperature 50 – 86°F / 10 – 30°C
Site Survey KIP 900 Series site survey documentation is to be completed prior to system installation
Min. Door Width 32” / 813 mm

  • The support and availability of the listed specifications and functionalities varies depending on operating systems, applications, network protocols as well as network and system configurations.
  • Some of the product illustrations contain optional accessories.
  • Specifications and accessories are based on the information available at the time of printing and are subject to change without notice.
  • Konica Minolta does not warrant that all specifications mentioned will be error-free.
  • Microsoft, Windows and the Windows logo are trademarks, or registered trademarks, of Microsoft Corporation in the United States and/or other countries.
  • All other brand and product names may be registered trademarks or trademarks of their respective holders and are hereby acknowledged.
