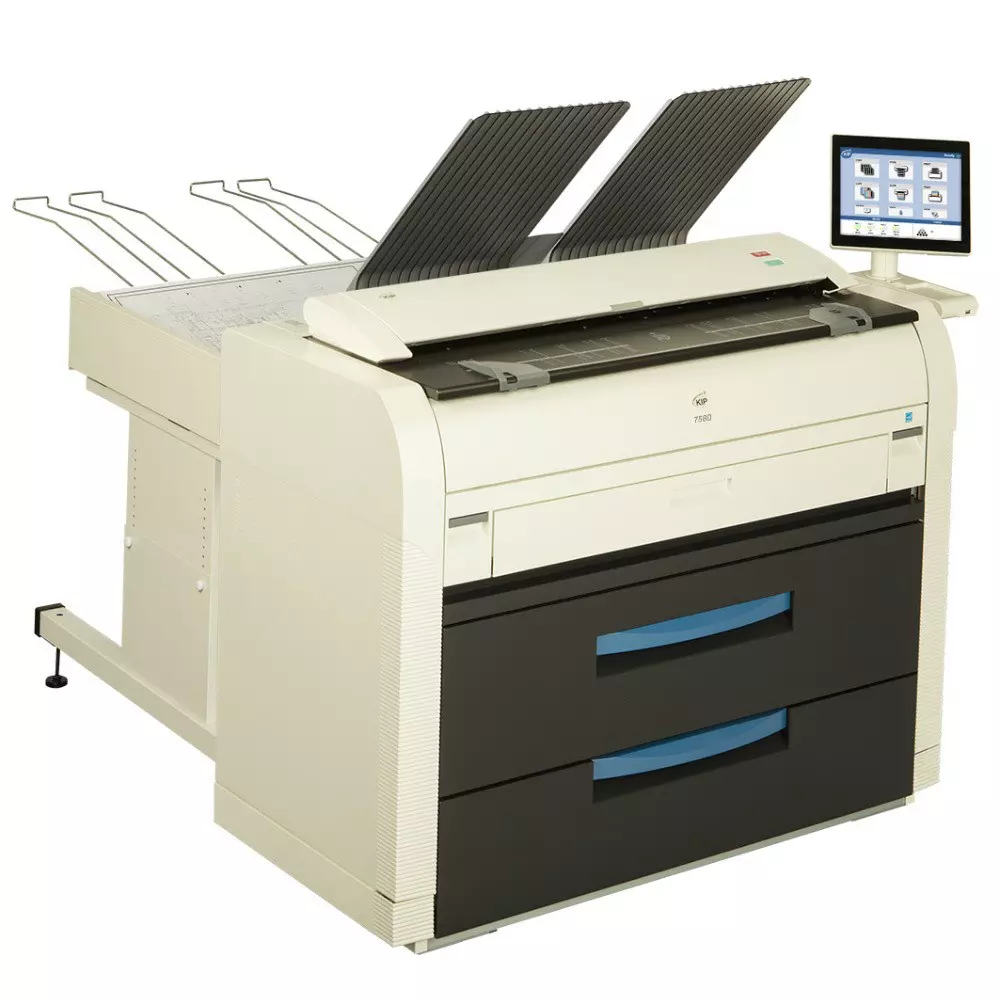

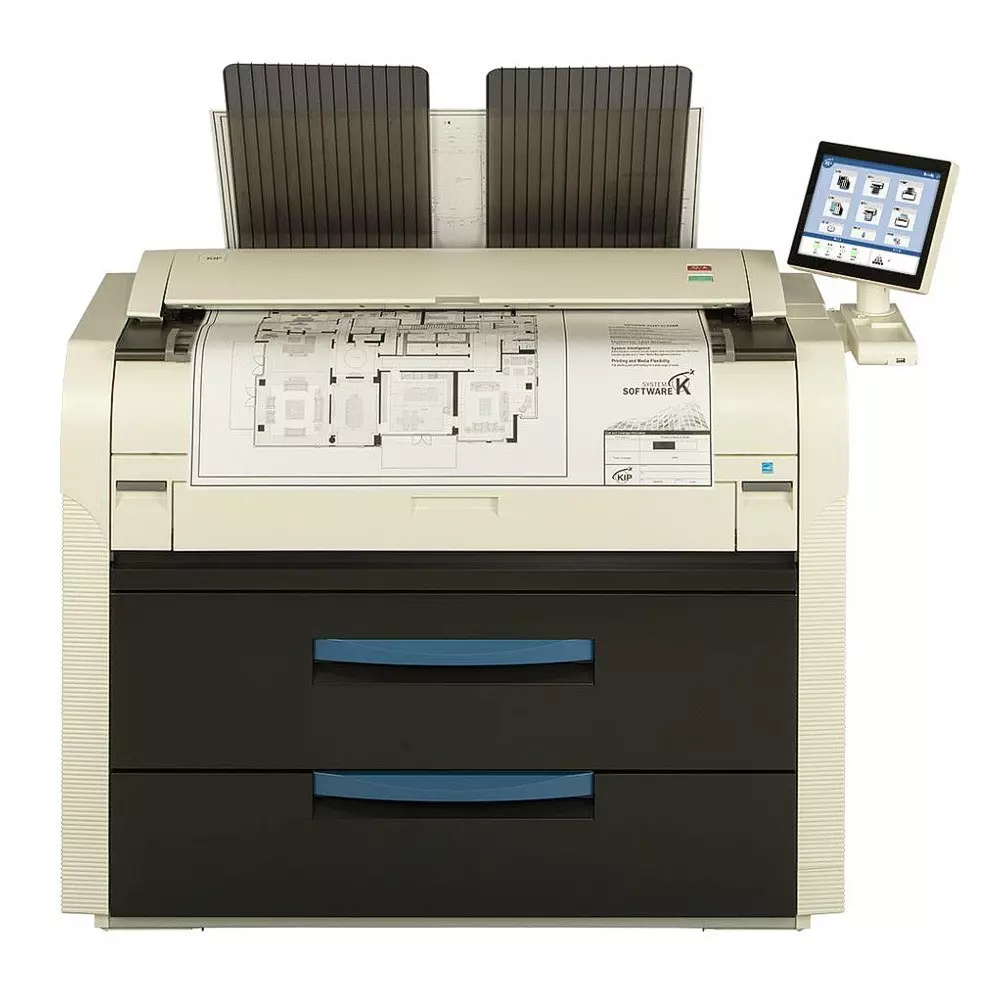

KIP 7580

  • Yeni Entegre CIS Renkli Tarayıcı KIP 720
  • Dakika başına 10 adet A1 boyutta baskı
  • 2 veya 4 Rulolu yapılandırmalar
  • Üstten istifleme
  • Az yer kaplayan tasarım
  • KIP System K Yazılımı
KIP 7580 professional printer
KIP 7580 professional printer
KIP 7580 professional printer
KIP 7580 professional printer
KIP 7580 professional printer

Özellikler

Özellikler

KIP 7580 – Çok İşlevli Sistem

CIS taramalı KIP 7580 MFP Sistemleri, ister dar alanlarda, ister duvar karşı olsun, ihtiyacınız olan her yere uyup alan tasarrufu sağlayan yenilikçi bir tasarım sunar. Otomatik iş akışı verimliliği, güçlü tek dokunuş verimliliği sağlayan KIP akıllı çoklu dokunmatik ekranla entegredir. İş Akışı Otomasyonu, kullanıcı etkileşimini basitleştiren, zaman tasarrufu sağlayan, maliyetleri düşüren ve doğruluğu artıran tek dokunuş verimliliğine yönelik olarak, belirli sistem özelliği kontrollerini kaydeder.

KIP 7580 professional printer

Teknik Özellikler & Download

Teknik Özellikler & Download
General
Description Monochrome wide format print/copy/scan with colour scanner
Type Electrophotography (LED) with organic photoconductor (OPC) and closed toner system
Speed A1 size per minute 10
Warm up time Less than 2 minutes from standby
Configurations Printer / MFP
Roll options 2 or 4 roll
Output delivery Top / rear
Electrical requirements 220V-240V +6% or -10%, 50/60Hz, 13A
Power consumption 1,500 W (printing), 430 W (standby)
Printer
Print resolution 600 x 2,400 dpi
Paper capacity 2 or 4 roll
Output sizes width 297 mm – 914 mm
Output sizes length 6 m (standard), 150 m based on media validation
Paper weight Bond-plain 64–90 gsm; vellum-translucent-tracing 80 gsm; film 75 gsm
Media types Bond, vellum, film
Controller
Controller type KIP System K Controller with Windows® 7 embedded
Memory 2GB DDR3 standard - upgradable to 4 GB
Hard drive minimum 320 GB - unlimited upgrade
Supported file type DWF, PDF, PDF-A, HPGL 1/2, HP-RTL, Calcomp 906/907, CALS Group 4, TIFF Group 4, CIT/TG4, Grayscale TIFF, TIFF Packbits, PNG, JPEG
Scanner KIP 720
Scanner Type C.I.S. with KIP RTT Technology
Scan Resolution 600 x 600 dpi optical resolution
Scan Speed Up to 203 mm per second (B&W) and up to 66 mm per second (Color)
Scan Format TIFF, Multipage TIFF, PDF, PDF-A, Multipage PDF, DWF, Multipage DWF, JPEG, CALS
Scan Destination Local USB (Removable Media), Unlimited IPS Mailboxes (Local), Unlimited FTP, Unlimited SMB
Original Size Width  279 - 914 mm
Original Thickness Up to 1.6 mm thick
Interface USB 2.0
Dimensions 1,092 mm x 406 mm x 170 mm
Weight 25 Kg
Electrical 100-240 V AC 50/60 Hz
Power Consumption <50 W

  • The support and availability of the listed specifications and functionalities varies depending on operating systems, applications, network protocols as well as network and system configurations.
  • Some of the product illustrations contain optional accessories.
  • Specifications and accessories are based on the information available at the time of printing and are subject to change without notice.
  • Konica Minolta does not warrant that all specifications mentioned will be error-free.
  • Microsoft, Windows and the Windows logo are trademarks, or registered trademarks, of Microsoft Corporation in the United States and/or other countries.
  • All other brand and product names may be registered trademarks or trademarks of their respective holders and are hereby acknowledged.
