KIP 7590

  • KIP 2300 CCD Tarayıcıyla Yeni Çok İşlevli Sistem
  • Dakika başına 10 adet A1 boyutta baskı
  • 2 veya 4 Rulolu yapılandırmalar
  • Üstten istifleme
  • KIP System K Yazılımı
KIP 7590 professional printer
KIP 7590 professional printer
KIP 7590 professional printer
KIP 7590 professional printer

Özellikler

Özellikler

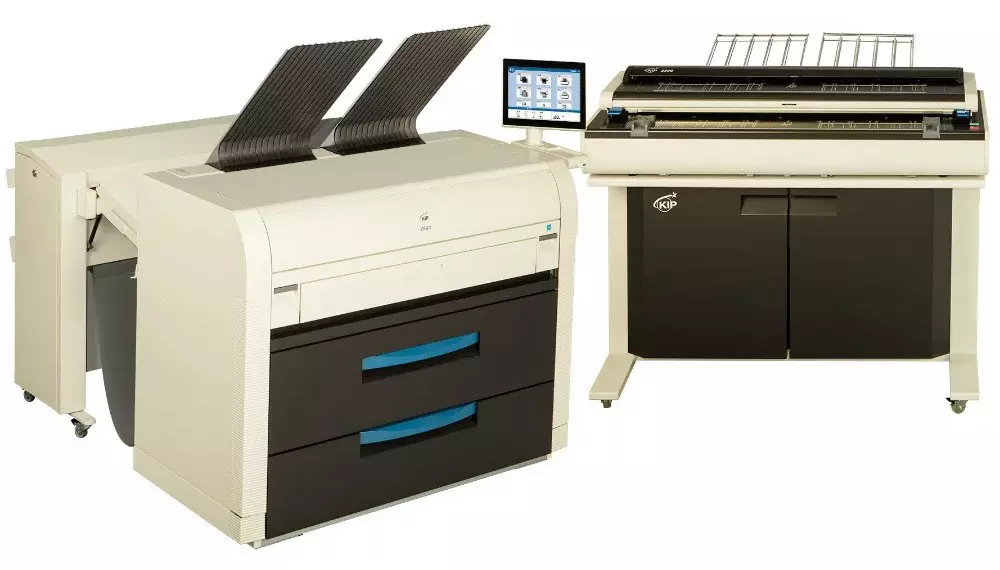

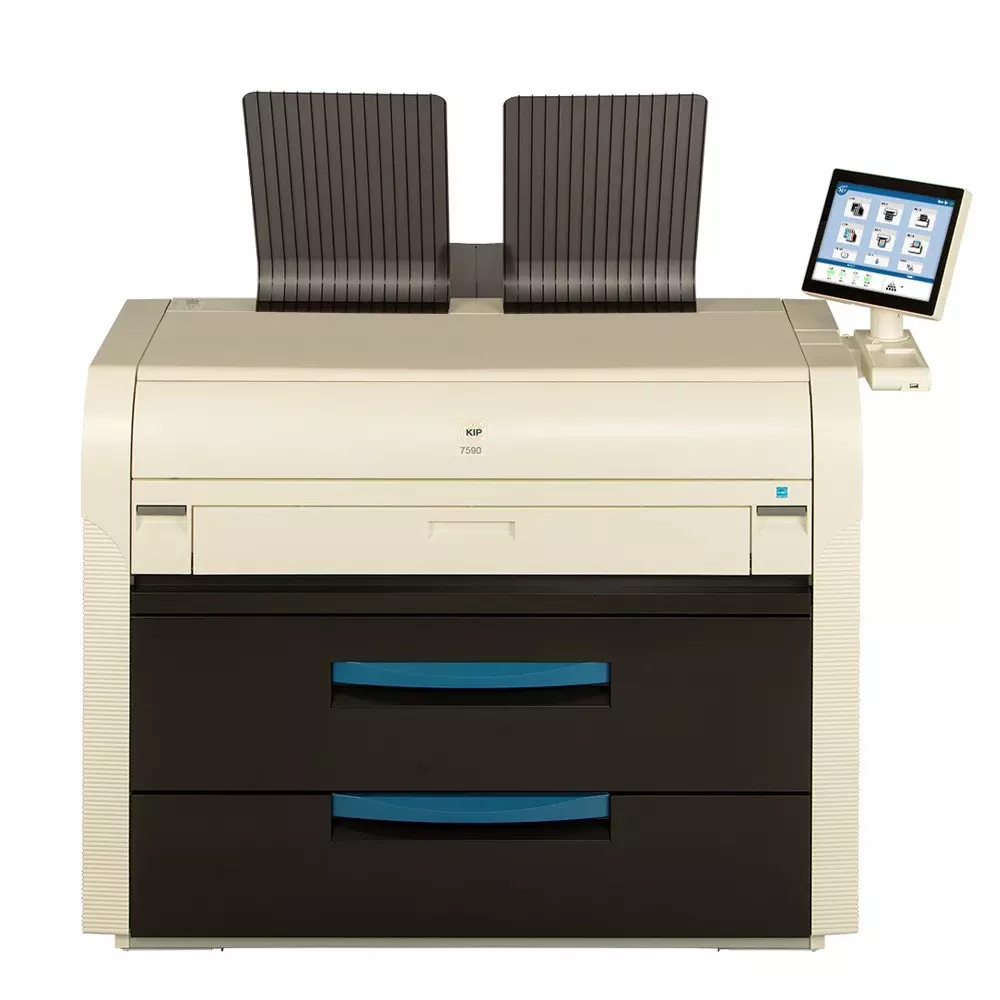

KIP 7590 – Çok İşlevli Üretim Sistemi

Üretimi güvenle optimize edin. KIP 7590, kurumsal iş akışı kapasitelerini ve verimliliğini artıran akıllı üretkenlik sağlar. Modüler ve az yer kaplayan tasarım, renkli tarama hızı, yukarı bakan/aşağı bakan/kalın ortam belgeleri besleme çok yönlülüğü ve dijital görüntüleme kalitesi için benzersiz yüksek bir standart oluşturan KIP 2300 CCD tarayıcıyı içerir. KIP 7590 yazıcının yüksek performansı, maliyetleri azaltırken projeleri daha kısa sürede güvenilir biçimde tamamlar. KIP System K PrintPro.net ile bir uygulama yazılımı yüklenmesi gerekmez. Operatör tercihlerini içeren tekil ön ayarlara erişerek, işlem öncesinde hazırlanın ve yeni baskı işlerini hızla başlatın.

KIP 7590 professional printer

Teknik Özellikler & Download

Teknik Özellikler & Download
General
Description Monochrome wide format print/copy/scan with colour scanner
Type Electrophotography (LED) with organic photoconductor (OPC) and closed toner system
Speed A1 size per minute 10
Warm up time Less than 2 minutes from standby
Configurations Printer / MFP
Roll options 2 or 4 Roll
Output delivery Top / rear
Electrical requirements 220V-240V +6% or -10%, 50/60Hz, 13A
Power consumption 1,500 W (printing), 430 W (standby)
Printer
Print resolution 600 x 2,400 dpi
Paper capacity 2 or 4 roll
Output sizes width 297 mm – 914 mm
Output sizes length 6 m (standard), 150 m based on media validation
Paper weight Bond-plain 64–90 gsm; vellum-translucent-tracing 80 gsm; film 75 gsm
Media types Bond, vellum, film
Controller
Controller type KIP System K Controller with Windows® 7 embedded
Memory 2GB DDR3 standard - upgradable to 4 GB
Hard drive minimum 320 GB - unlimited upgrade
Supported file type DWF, PDF, PDF-A, HPGL 1/2, HP-RTL, Calcomp 906/907, CALS Group 4, TIFF Group 4, CIT/TG4, Grayscale TIFF, TIFF Packbits, PNG, JPEG

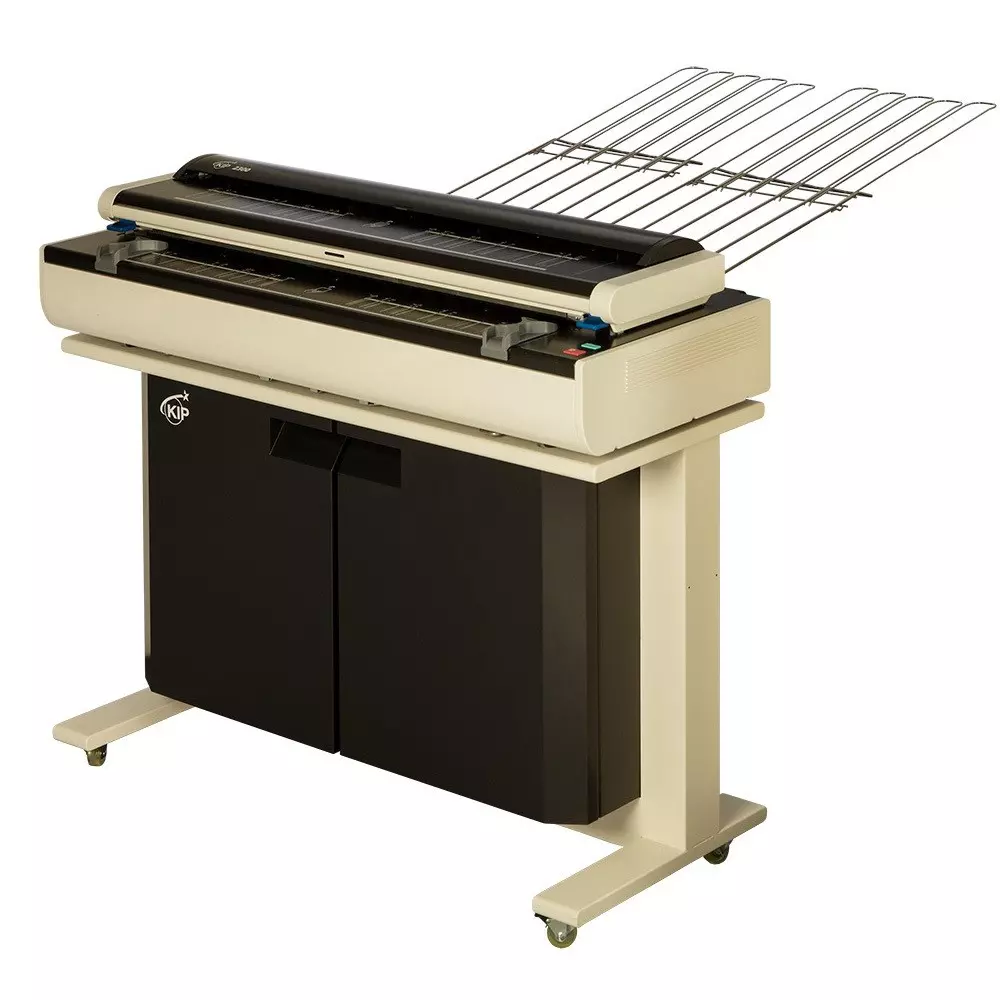

Scanner KIP 2300
Scanner Type C.C.D. with KIP Tru-Speed Technology and KIP RTT Technology
Scan Resolution 600 x 600 dpi optical resolution
Scan Speed Up to 18 m per minute (Mono) and up to 9 m per minute (Color)
Scan Formats TIFF, Multipage TIFF, PDF, PDF-A, Multipage PDF, DWF, Multipage DWF, JPEG, CALS
Scan Destination Local USB (Removable Media), Unlimited IPS Mailboxes (Local), Unlimited FTP, Unlimited SMB
Original Size Width/Length Originals Up to 1,066 mm - 914 mm Scan width
Original Thickness Up to 16 mm Automatic thickness detection
Original Face Up/Face Down Both - Dual Original Feed Tables
Interface USB 2.0, KIP Tru•Speed Technology (2.3GB per sec data transfer)
Dimensions 1,399 mm W, 480 mm D, 310 mm H
Weight 73 kg
Electrical 100-240V AC 50/60 Hz
Power Consumption <120 W

  • The support and availability of the listed specifications and functionalities varies depending on operating systems, applications, network protocols as well as network and system configurations.
  • Some of the product illustrations contain optional accessories.
  • Specifications and accessories are based on the information available at the time of printing and are subject to change without notice.
  • Konica Minolta does not warrant that all specifications mentioned will be error-free.
  • Microsoft, Windows and the Windows logo are trademarks, or registered trademarks, of Microsoft Corporation in the United States and/or other countries.
  • All other brand and product names may be registered trademarks or trademarks of their respective holders and are hereby acknowledged.
