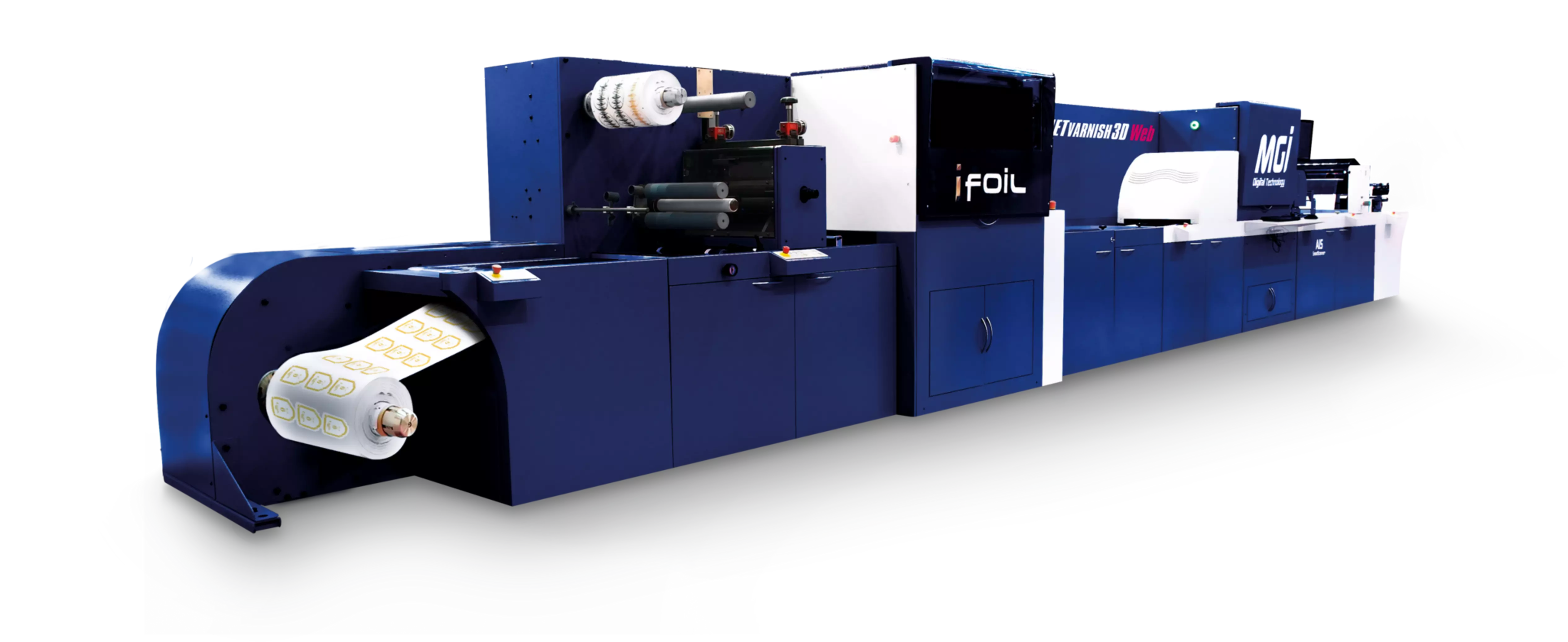

MGI JetVarnish 3D Web

MGI JetVarnish 3D Web

Büyüleyici web tabanlı efektler oluşturun

  • Etiket yazıcıları ve esnek ambalaj üreticilerine yönelik Web'den Beslenen Çözümdür
  • Hat içi 2D ve 3D nokta UV kaplama, kabartmalı sıcak varak, kalıp kesimi ve yarma işlemleri içindir
  • Kusursuz kayıt, 42 m/dk'ya kadar hız ve 232 mikrona kadar farklı kalınlıklar oluşturma becerisi sağlayarak dokunsal ve kabartma efekti sunar
  • Daha fazla esneklik, daha kısa çalışma süreleri, daha hızlı teslimat süreleri ve kişiselleştirme
  • MGI ARTIFICIAL INTELLIGENCE SMARTSCANNER (AIS) ile otomatik eğme, esnetme, germe ve kayma ayarı anında yapılabilir
  • 100 mm'den 420 mm'ye kadar metalik, holografik ve renkli varak kullanılabilir
  • Görevler görece kolay anlaşılır ve uygulanır. Geleneksel süsleme ekipmanlarına kıyasla, hazırlık süreci daha uygun maliyetlidir ve zamandan tasarruf sağlar
  • Kaplamalı, kaplamasız ve dokulu kağıt, film veya kendinden yapışkanlı etiketler kullanılabilir
MGI JetVarnish 3D Web

Özellikler

Özellikler

MGI JetVarnish 3D Web

JETvarnish 3D Web aracımız aşağıdakileri içeren farklı özellikler sunar...

  • Ortam işleme özellik simgesi

    Muhteşem efektler

    Kaplamalı ve kaplamasız malzemelere, sentetik maddelere, kağıtlara ve hafif kartonlara nokta UV lak ve sıcak varak uygular

  • Sonlandırma özellik simgesi

    Kalıp kesme ünitesi

    Etiketlerin son rötuşunu hat içinde yapmaya yönelik isteğe bağlı yarı döner kalıp kesme ünitesi, standart iki kesici bıçak, gap master sistemi

  • Kullanılabilirlik özellik simgesi

    Kullanım kolaylığı

    Cihaz hızlı anlaşılır, kolay kullanılır ve gerektirdiği özel beceriler daha azdır. Böylelikle operatörler diğer işleri yapmak için serbest olur

  • Sonlandırma özellik simgesi

    Tamamen döner flexo UV istasyonu

    Tam laklama ve astarlama için Hat İçi Döner Flexo UV istasyonu, kaplamasız malzemeleri de içeren çok çeşitli substratlarda UV laklama ve sıcak varak son rötuşu sağlar

  • Teknoloji özellik simgesi

    iFoil teknolojisi

    Dijital/değişken 2D ve 3D lak ve varak süslemeleri, kendinden yapışkanlı etiketler ve esnek ambalajlar için katma değer, metalik, holografik ve renkli varak seçimi

MGI JetVarnish 3D Web
  • Sürdürülebilirlik özellik simgesi

    MGI Artificial Intelligence Smartscanner (AIS)

    Lak ve sıcak varak kayıt sistemi, her sayfayı otomatik olarak tarar ve dijital maske filmiyle karşılaştırır. Kayıt işareti olmaz, hazır olma süresi ve atık azalır

  • Sonlandırma özellik simgesi

    Rulo açıcı ve geri sarıcı

    Değişken web genişliği, otomatik makara çapı hesaplama, gerginliği ayarlanabilir birleştirme tablası ve daha fazlası

  • Speed feature icon

    Yüksek üretim hızı ve kusursuz lak kalitesi

    Dakikada 42 metreye kadar hızlar, 7 ila 232 mikronluk dokunsal ve kabartma efekti

  • Productivity feature icon

    Geniş uyumluluk

    Dijital, flexo ve ofset web'den web'e baskı teknolojileriyle uyumludur

Teknik Özellikler & Belgeler

Teknik Özellikler & Belgeler
System Specifications
Printing Speeds Up to 42m/mn¹ (depending on application).
Supported Web Widths From 100 mm up to 420 mm
Finishing Width The maximum image width is 405 mm
Substrate Types² From 50 up to 400 microns (μm)
Coated, uncoated and textured paper, film or label
Self-adhesive labels
White or transparent synthetics, PP, PE, POPP, PET
Light cardboard/folding carton
Shrink film: PVC, PETG
Wide Compatibility Compatible with the overall web-to-web printing
Technologies, narrow web digital presses and the
traditional offset or flexo narrow web presses.
Unwinder Maximum roll diameter capacity: 850 mm
Standard inside core diameter: 3 inches
Maximum roll weight: ±120 kg
UV Flexo Station An integrated flexo station for full size sleeve coating in
rotary. This station is used to apply a UV protection varnish
or primer prior to finishing. The module comes with an UV
dryer. The station is equipped with an anilox cylinder.
Additional anilox cylinders are available as upgrade options.
Spot UV Coating and
Embossing Station		 This station uses MGI award-winning inkjet technology
for producing Spot UV Coating. Any defined label area can
receive Spot UV Coating with or without raised 3D texture
effects. A simple grey level TIFF file designed by Prepress
controls the surface area and the thickness of the
varnish applied over the printed roll. This 100 % digital
process eliminates traditional plates, screens and dies.
Varnish thickness From 7² to 232² μm of varnish thickness
(from 2D flat coats to 3D raised effects).
Inline curing The unit is equipped with an UV dryer and a cooling
drum for optimum web temperature control. The curing
sequence also includes a special forward and backward roll
motion to dry each label and eliminate waste between runs.
UV Varnish Gloss varnish 99 GU
Hot Foiling Station The hot foiling station adds luxurious effects and brand
value to label and packaging products. Any defined label
area can receive digitally-controlled foil with or without
raised effects.
A simple grey level TIF file designed by Prepress
controls the surface area and the definition of the foil
applied on the printed roll. This 100 % digital process
eliminates traditional dies, plates and screens.
Foil application can be bypassed when not necessary.
Foil rolls Foils are delivered on rolls:
Foil widths from 100 mm up to 420 mm
Foil roll core diameter: 1’’ and 3’’
Foil lengths from 400 m up to 2,000 m
Up to 3 rolls can be used simultaneously during
the production
Die Cutting Unit A semi-rotary die cutting unit is available as an
option to finish labels in-line on the JETvarnish 3D
Web. The unit uses a 21’’ magnetic cylinder and an
automatic registering system. 2 slitter knives are
included as well as a matrix rewinder.
format in semi-rotary: 100 up to 480 mm
maximum matrix diameter: 600 mm
2 slitter knives as standard: 10 max
Gap master system for die height adjustment as an option.
Rewinder Servo-motorized unit
850 mm maximum roll diameter capacity
Standard inside core diameter: 3 inches
Maximum roll weight: ± 120 kg
Printing Press
Compatibility List		 Digital: Konica Minolta AccurioLabel, HP Indigo WS4500, HP
Indigo, WS6800, Epson, Xeikon, EFI, Durst, etc.
Offset: All manufacturers and technologies: UV, H₂O or
WATERLESS
Flexo: All manufacturers and technologies: UV or Water based
Dimensions & Weight 400 V - 3Ph
240 V - 1Ph
Dry air compressor (oil-free): 8 bar/102 psi - 24 m³/h/6 cfm
All speeds are nominal
Available options
Corona substrate
treatment module		 In-line system made to optimise varnish
adhesion on complex printed substrates
Variable Data Printing To manage and edit files on the workstation,
Full variable data (text, graphic, image) for both 2D/3D Spot
Coating and Hot Foiling areas,
Integrated barcode (1D/2D) reader system & controller,
Raster Image Processor (RIP) as an option

¹ speed will vary according to printing parameter used
² confirm substrate compatibility with Konica Minolta
³ depending on the configuration
